Stand alone telephone recorder
AR120 is a single line stand alone telephone recorder with 16GB SD card. It is compatible with landline phones, digital phones, fixed wireless phones/terminals, PABX. AR120 can record all incoming calls and outgoing calls. It can also work as a voice logger for meetings, lectures, interviews, etc., and/or as a telephone answering machine.
|Name ||Stand alone telephone recorder ||Model No. ||AR120|

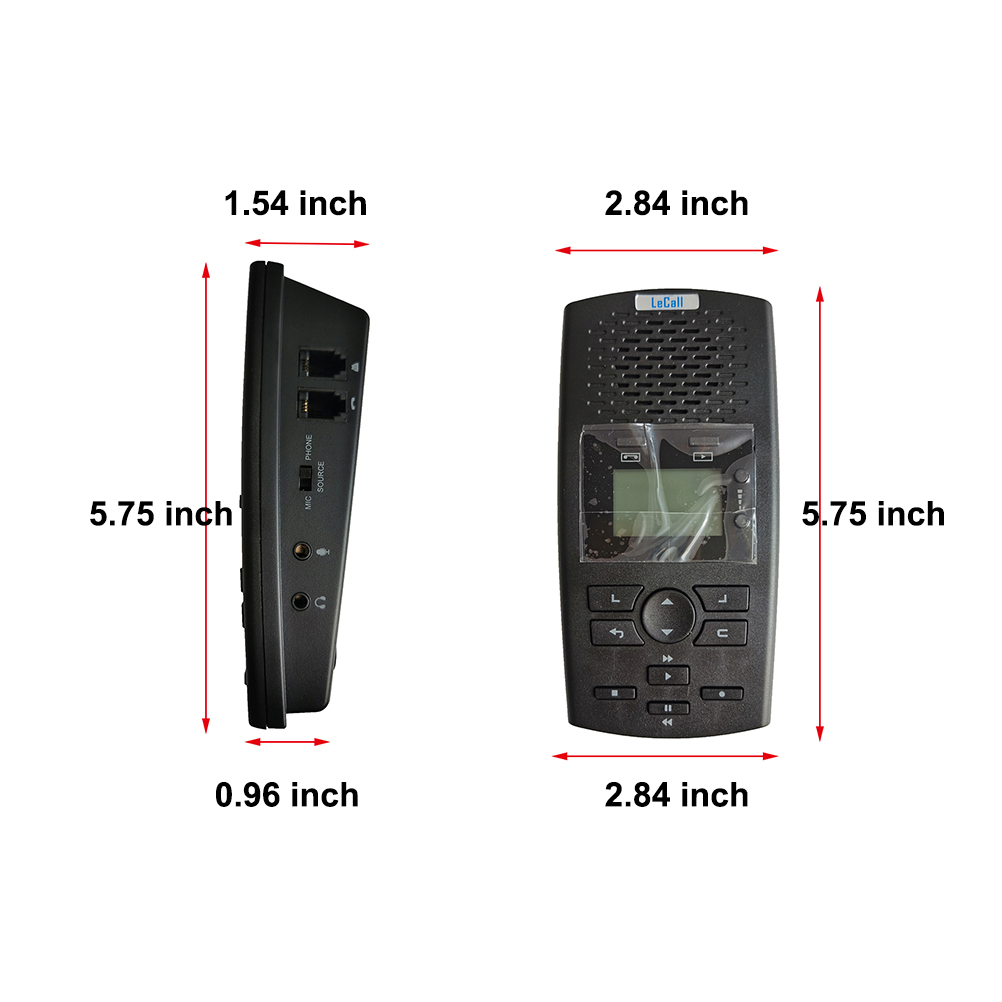

|Dimension ||5.75 x 2.84 x 1.54 inches ||Weight ||11.2OZ|
AR120 is a Stand alone phone call recorder with replaceable SD card, it can record for more than 970 hours with the attached 16GB card. And it supports loop recording.
AR120 can record all incoming calls and outgoing calls. It can also work as a voice logger for meetings, lectures, interviews, etc., and/or as a telephone answering machine.
AR120 is compatible with landline phones, digital phones, fixed wireless phones/terminals, PABX.
It supports Auto recording mode, Manual recording mode and Voice trigger recording mode. Users can set proper mode and parameter according to the requirements and situations.(refer to the manual)
With built-in microphone, speaker and LCD screen, users can search, review, play, mark and manage the recording files on the device.
AR120 can be connected to computer via a USB cable, users can export, play and manage recording files on computer. NOTE: While being connected to computer, users can NOT operate on the device.
Time and Date information MUST be set every time you open the device. The right time and date information helps to manage recording files. Only when the device is connected to a landline with FSK caller ID format, the time and date information will be updated automatically.
AR120 is working with a DC 5V 1A power adaptor. When users plugin the power, it will run automatically, no ON/OFF switch. It has a backup 3×AAA batteries holder(batteries not included). The standby time for 3×AAA batteries is 5-7 hours, while the recording time is 2-3 hours.
While setting LOOP REC., if users choose DELETE OLDEST, that means you set loop recording mode, users can not see the Recording time of remaining capacity; if users choose STOP REC., users can see the Recording time of remaining capacity.
AR120 has a SOURCE PHONE/MIC. Switch. It supports Phone recording mode and Microphone recording mode. NOTE: Users can NOT use microphone that insert into the microphone port on the device to record a phone call. It is for environment recording ONLY.
Users can enable/disable the answering machine function and listen/ to the messages on the device or remotely(refer to the manual)
Users can record a private greeting audio file for answering machine function and an announcement audio file to broadcast to both sides when start recording.

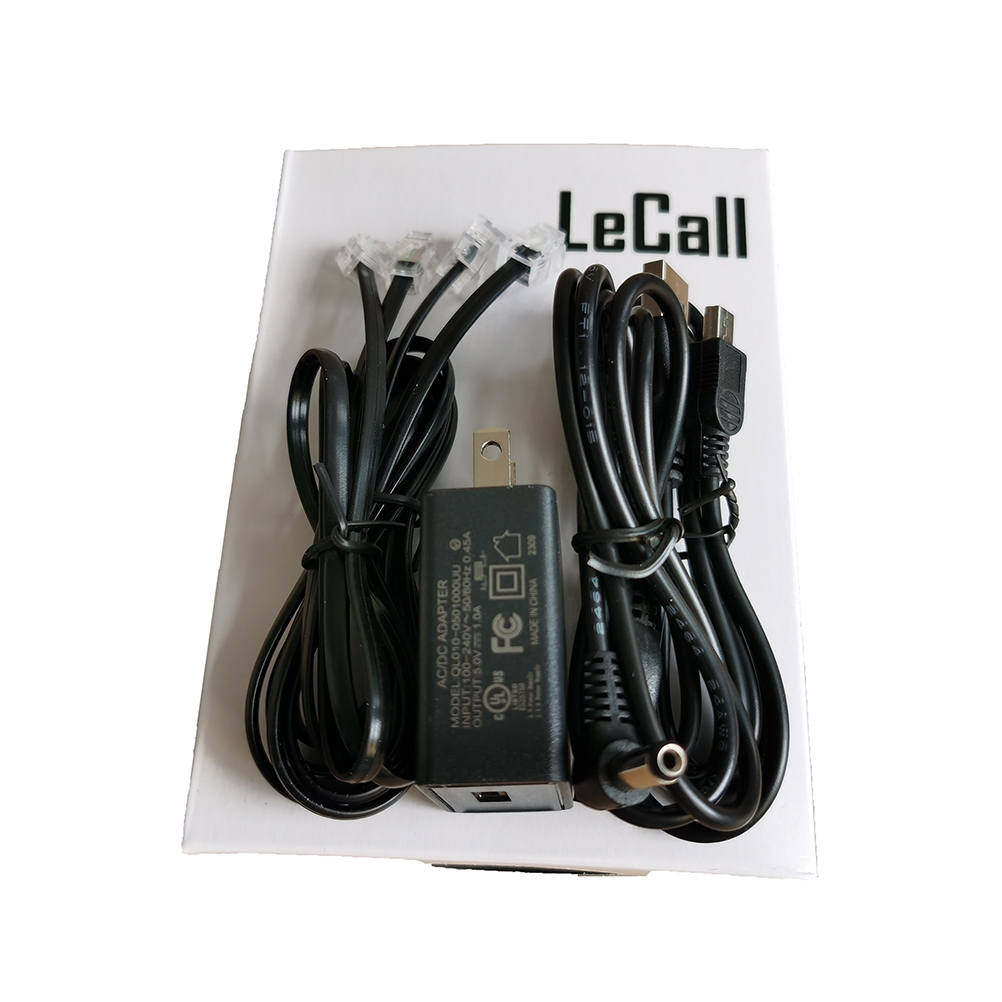

AR120 telephone recorder ×1; DC5V power Adaptor ×1; 1m USB Cable ×1; 1m RJ11 phone cable ×1; 0.5m RJ9 phone cable ×1; 16GB SD card ×1.
Warranty: One year quality warranty.
If you have any question about the item, feel free to contact us for support. You can also read the User Manual to fix the problem by yourself.
Download User Manual for AR120 stand alone telephone recorder: https://31456435.s21i.faiusr.com/61/ABUIABA9GAAgvaGhpwYowOKaag.pdf
